Impact Casement Window

Share:
Features

Features

.  Certificates: Florida approval, AS2047 & NZS 4211

. Lock System :Multi-point locking system for high sealing performance

. Design : Easy & smooth slider action

. Customize door and solution Provide

. Warranty: 10 Years quality warranty

. Special impact profile and glass, safe from hurricane

Technical

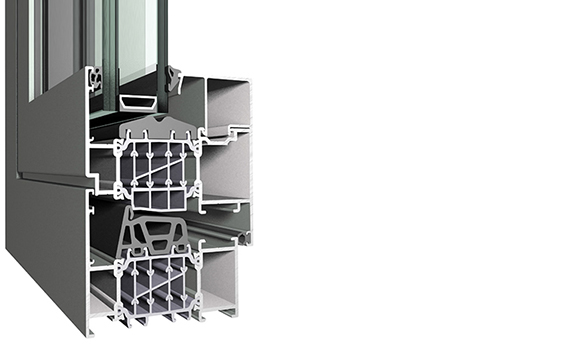

Hi-Tech profile and reinforced material

Reinforced glass fiber thermal insulation bar with high loading capacity

Pressure extrusion for higher strength level

Coex wire seal to protect against moisture

Multi-point hardware lock system for weather sealing and burglarproofing

Truss structure design for increased structural strength

Tilt-turn system achieves the AAMA rating of CW-PG60

Corner locking key ensures the smooth surface joint and improves corner stability

Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue

Technical
Application

Application

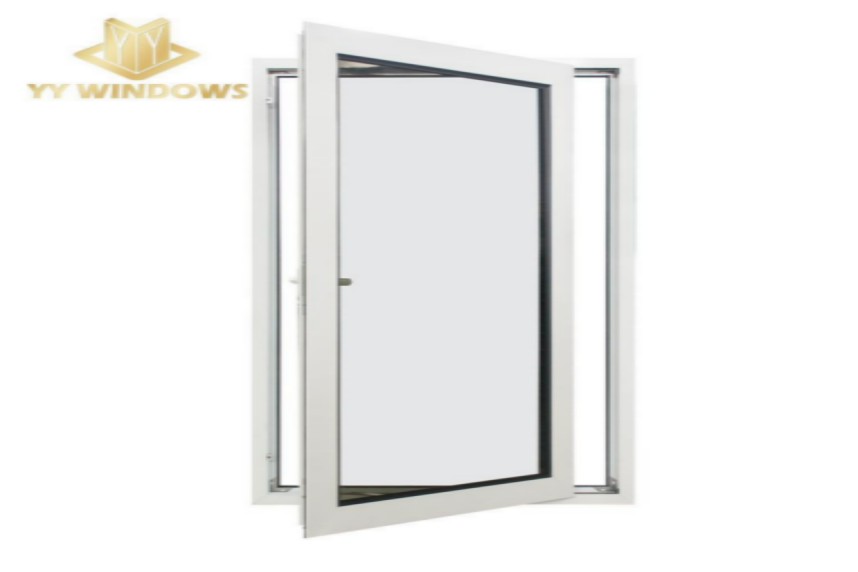

YY casement windows capture the essence and tradition of past windows in order to make your home more airy.Combining the design versatility of aluminum and the simple appearance, casement windows are ideal for locations where you want to maximize your view through a large, barrier-free glass area.

A big advantage of casement windows is that they can maximize the control of the breeze and direct it to any area of your home. This is achieved through its unique 90° pivot brace, which opens in a way to center the window frame to catch the breeze from any direction.Hidden drainage design, rainwater will not splash into the room in stormy weather.Suitable for various civil buildings such as villas, apartments, houses, etc.

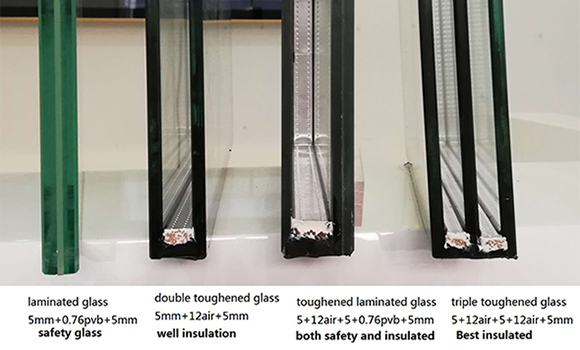

Glass Option

.  SGCC & IGCC , USA & Canada Certificate

.  AS2208 & AS4666 Certificate

.  Thickness of single glass: 5-20mm

.  Glass types: Frosted glass, Toughened glass, Low-e coated glass

. Special performance glass: Fireproof glass, Bulletproof glass,tinted, low-e, sound-proof and burglarproof

Glass Option
COLOR

COLOR

 . Classic color: Matt Black , light grey, Monument, white

 . Other colors : RAL COLOR ,Dulux color, interpon Color

 . Surface treatment :Powder coating, anodise, PVDF…

 . Corrosion –resistance and 10 years+ warranty

 . customized colors to match each project design
